Turning machines (lathes)
A number of different turning machines (lathes), both manually and CNC operated, are available in the AlbaNova mechanical workshop.
Turning machines (lathes), CNC operation
Haas ST-10
Centre height: 365 mm
Centre width: 406 mm
Swing over bed: 419 mm
Swing over cross slide: 419 mm
Chuck diameter: 165 mm
Cross stroke in X-travel: 200 mm
Longitudinal stroke in Z-travel: 406 mm
Rotational speed: 0-6000 rpm
Feed rate: 0-30 m/min

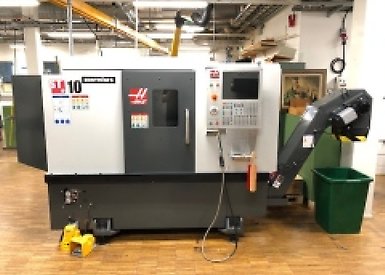

Haas ST-10 lathe
Schaublin 125
Centre height: 125
Centre width: 500
Swing over bed: 270 mm
Swing over cross slide: 130 mm
Chuck diameter: 150 mm
Cross stroke in X-travel: 180 mm
Longitudinal stroke in Z-travel: 410 mm
Rotational speed: 0-5000 rpm
Feed rate: 0-5000 mm/min

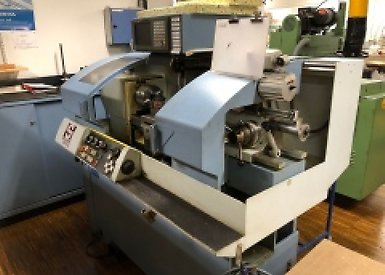

Schaublin 125
Turning machines (lathes), manual operation
Köping S8 SAG
Centre height: 210 mm
Centre width: 750 mm
Swing over bed: 435 mm
Swing over cross slide: 232 mm
Swing over gap: 715 mm
Gap: 265 mm
Rotational speed: 15-1200 rpm

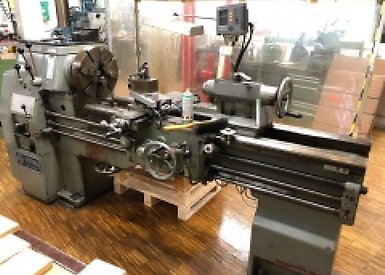

Köping S8 SAG
Storebro GK195
Centre height: 195 mm
Centre width: 1000 mm
Swing over bed: 390 mm
Swing over cross slide: 245 mm
Swing over gap: mm
Gap:
Rotational speed: 37-1600 rpm

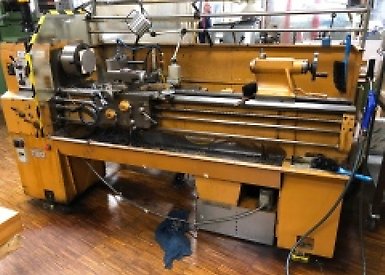

Storebro GK195
Schaublin 102 VM
Centre height: 102 mm
Centre width: 450 mm
Swing over bed: 200 mm
Swing over cross slide: 120 mm
Swing over gap: mm
Gap: mm
Rotational speed: 45-3100 rpm

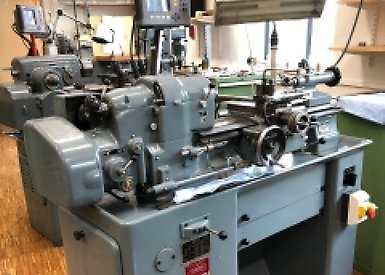

Schaublin 102 VM
Schaublin 120 VM
Centre height: 120 mm
Centre width: 600 mm
Swing over bed: 250 mm
Swing over cross slide: 135 mm
Rotational speed: 50-1750 rpm

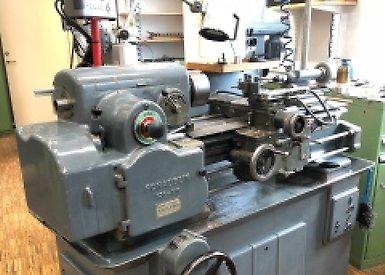

Schaublin 120 VM
